U.FL to Pinheader Adapter

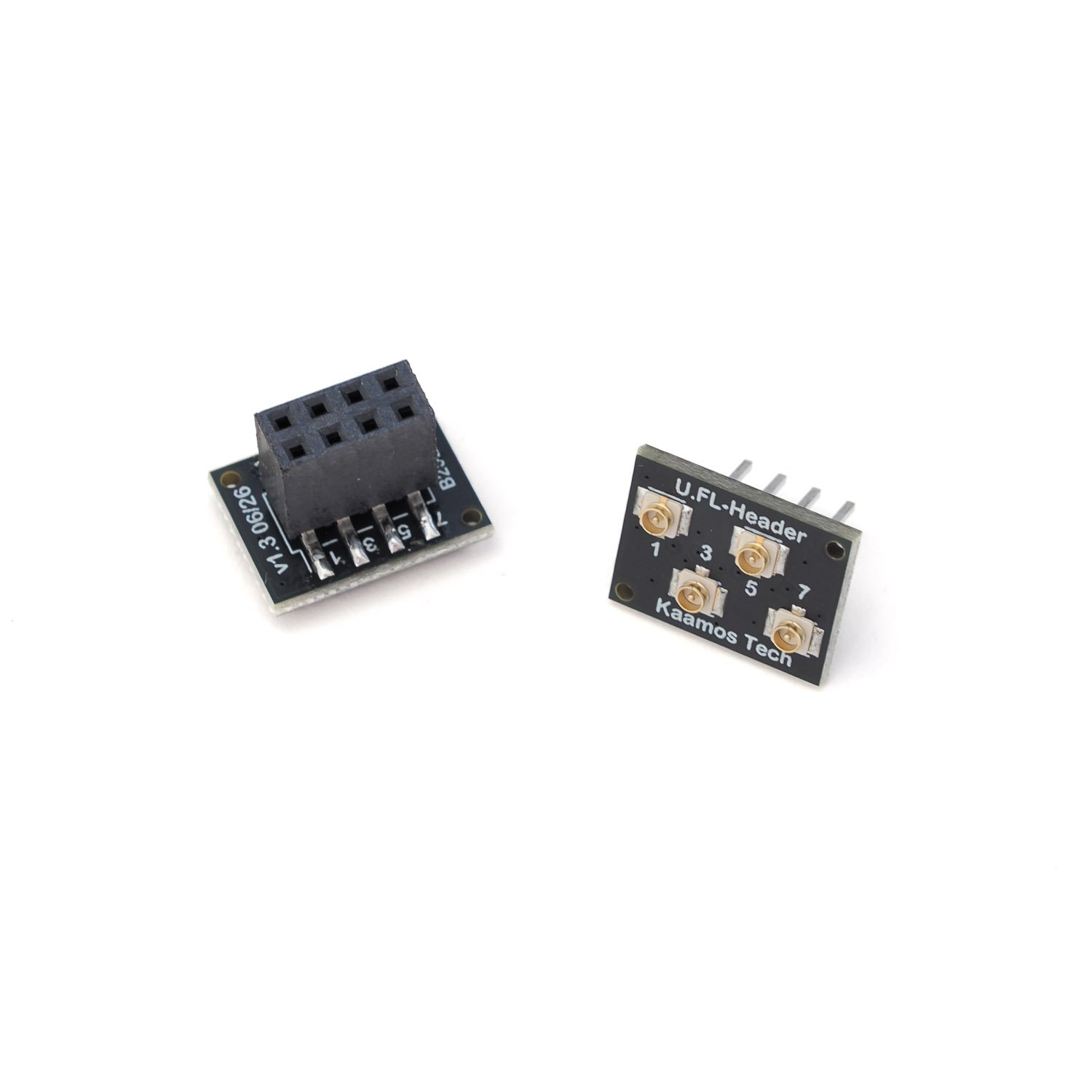

Select a female/socket (left-hand side connector in the photos) or male/pins (right-hand side) header.
One row of the header is ground pins, therefore it only works with boards where every second pin is ground (all Kaamos Tech boards), or otherwise modifications are needed. Please check your board schematics.
The PCB is 16mm x 12mm with a high-quality Samtec header.
Below is an example use case where a female adapter is used on DAR 18 PCM input header.
More information
For more information see a post on connecting U.FL and headers.
